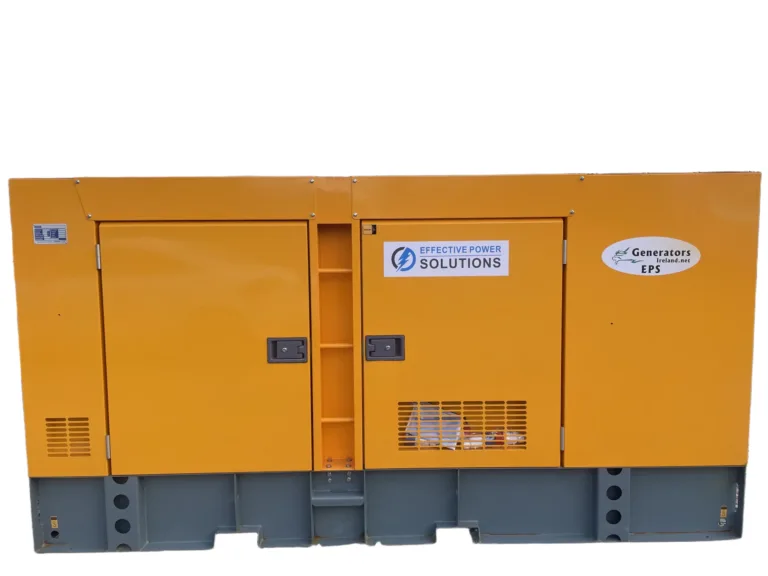

EPS / KOFO Silent Diesel Generator – GF3-50 Specifications
General Specifications
| Parameter | Specification |
|---|---|
| Generator Series | EPS / KOFO Series |
| Generating Set Model | GF3-50 |
| Manufacturer | EPS / KOFO |
| Model Type | Silent |
| Frequency / Phase | 50 Hz / Three Phase |
| Voltage Options | 415/240V · 380/220V · 220/127V · 200/115V |
| Control System | Smartgen HGM6120N / DSE3110 |
Engine Specifications
| Parameter | Value |
|---|---|
| Engine Brand | EPS / KOFO |
| Engine Model | N4105ZLDS |
| Speed Governor | Mechanical Governor (M) |
| Aspiration | Naturally Aspirated (NA) |
| Engine Speed | 1500 RPM |
| Fuel Consumption Rate | 225 g/kW·h |
| Oil Consumption | 1.06 L/h |
| Fuel Tank Capacity | 110 L |
Alternator & Electrical
| Parameter | Value |
|---|---|
| Alternator Brand | EPS Stamford |
| Alternator Model | UC224E / GF3-50 |
| Insulation Class | Class H |
| Excitation System | Brushless |
| A.V.R Model | SX460 |
Dimensions & Weight
| Parameter | Value |
|---|---|
| Length (L) | 1800 mm / 2280 mm |
| Width (W) | 800 mm / 930 mm |
| Height (H) | 1200 mm / 1250 mm |
| Net Weight | 815 kg / 1120 kg |
| Gross Weight | 865 kg / 1122 kg |
| Noise Level @ 7m | 70 dBA |
| Silencer Noise Reduction | 10–20 dBA |
Standard Features
| Feature | Description |
|---|---|
| Protection | IP44 Canopy / IP56 Control Panel |
| Cooling System | 50℃ Radiator |
| Safety | Fire Extinguisher & High Water Temperature Protection |
| Fuel System | Big Daily Fuel Tank & Engine Oil Pump |
| Electrical | ATS Receptacle & Lockable Battery Isolator Switch |
| Structure | Powder-Coated Canopy, Steel Base Frame with Forkslots |
| Vibration Control | Anti-Vibration Isolators Between Engine, Alternator & Base Frame |
| Wiring | Integrated Wiring Design |
Note: Data is for reference only and not for sales use. Weights are approximate and exclude fuel.
EPS KOFO GF3-50 50kW diesel generator is a reliable power solution designed for industrial, commercial and standby power applications. Built with a high-performance KOFO diesel engine, the generator provides efficient fuel consumption and stable electricity output for businesses across Ireland.
GF3-50 Diesel Generator Applications
Overview
The EPS / KOFO GF3-50 diesel generator is a reliable 50kW power solution designed for industrial, commercial and standby power applications. Built with a durable KOFO diesel engine, the generator delivers efficient fuel consumption, stable power output and dependable performance in demanding environments. The GF3-50 model provides approximately 50kW standby power and 55kW prime power, making it suitable for factories, construction projects, agricultural operations and commercial facilities that require reliable backup electricity. :contentReference[oaicite:0]{index=0}
Key Features
- Reliable 50kW standby power output
- High-performance EPS / KOFO diesel engine
- Efficient fuel consumption and long operating life
- Available in open frame or silent canopy versions
- Digital control system for monitoring and protection
Applications
- Industrial factories and manufacturing facilities
- Construction sites and infrastructure projects
- Agricultural and farming operations
- Commercial buildings and warehouses
- Emergency backup power systems
Technical Specifications
The GF3-50 generator provides approximately 63kVA / 50kW standby power and 69kVA / 55kW prime power with a three-phase 50Hz electrical output. The generator is powered by a KOFO N4105ZLDS turbo diesel engine and is designed for reliable long-term operation in industrial environments. :contentReference[oaicite:1]{index=1}
Why Choose Generators Ireland
- Trusted supplier of industrial diesel generators in Ireland
- Reliable equipment from proven manufacturers
- Professional technical support and advice
- Fast nationwide delivery
- Warranty and after-sales service
Frequently Asked Questions
What power output does the GF3-50 generator provide?
The generator delivers around 50kW standby power and approximately 55kW prime power, making it suitable for industrial and commercial backup power systems.
Is the GF3-50 generator available in a silent version?
Yes, the generator is available in both open frame and soundproof silent canopy models depending on installation and noise requirements.
Where can this diesel generator be used?
It is commonly used for factories, construction sites, farms, commercial buildings, and emergency standby power systems.
Reliable Industrial Generator Standards
The GF3-50 diesel generator is designed to meet modern industrial power requirements and dependable standby applications. High-performance diesel generator systems follow recognised international engineering standards to ensure reliability, safety and consistent electrical output.
For more information about international generator performance and electrical equipment standards, visit ISO diesel generator standards.
